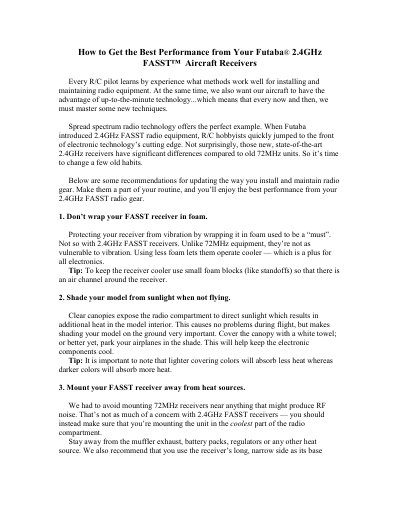

This article mainly introduces how to use Futaba® 2.4GHz FASST™ aircraft receivers to obtain the best performance.
This document offers recommendations for updating installation and maintenance routines to maximize the performance of Futaba 2.4GHz FASST aircraft receivers. Key advice includes avoiding foam wrapping around the receiver to prevent overheating, shading the model from sunlight when not in use, and mounting the unit away from heat sources like mufflers or battery packs.
The manual details the specifications for the TM-7 RF Module and R607FS Receiver, noting compatibility with specific Futaba transmitters (T7U, T8U, T9C, T9Z). It also explains safety features such as the Fail Safe function and provides step-by-step instructions for performing a range check to ensure reliable control before flight.
| Communication System | one-way communication |
|---|---|
| Antenna Type | 1/2 wavelength di-pole |
| Current Consumption (TM-7) | 150mA maximum |
| Power Requirement (R607FS) | 4.8V or 6.0V battery |
| Receiver Size | 1.64 x 1.08 x 0.36 in. |
| Receiver Weight | 0.34 oz. (9.8g) |
It is suggested to utilize a 4-cell NiCD or NiMH receiver battery pack as it allows effective use of the Battery F/S function.
You should be able to walk approximately 30-50 paces from the model without losing control.
No, the manual explicitly states that the TM-7 module is NOT compatible with the R606FS receiver.
