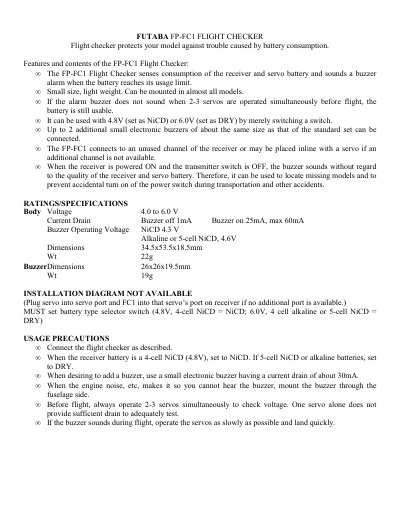

FUTABA FP-FC1 FLIGHT CHECKER

About this manual

The Futaba FP-FC1 Flight Checker is designed to protect radio-controlled models from trouble caused by battery consumption. It senses the voltage of receiver and servo batteries and sounds a buzzer alarm when the battery reaches its usage limit. The device features a small size and light weight, allowing it to be mounted in almost all RC models.

What's inside

• Features
• Ratings/Specifications
• Installation Diagram
• Usage Precautions

Specifications

Frequently asked questions

How do I set the battery type for the FP-FC1?

Set the switch to NiCD for a 4.8V (4-cell) battery, and to DRY for 6.0V (5-cell NiCD or alkaline).

How can I check if the batteries are still usable before flight?

Operate 2-3 servos simultaneously before flight to ensure the alarm buzzer does not sound.
