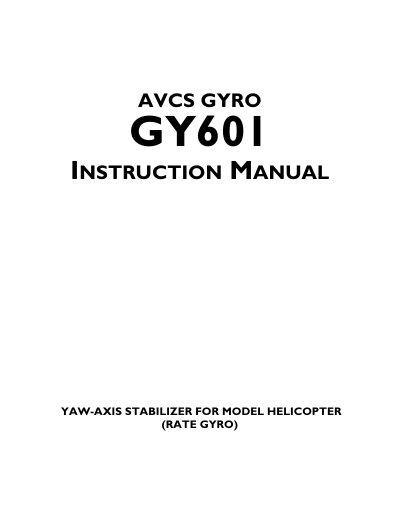

Futaba GY601 AVCS Gyro Instruction Manual

About this manual

The Futaba GY601 is an Angular Vector Control System (AVCS) rate gyro developed for model helicopter competition. It features a super narrow pulse drive system using the special S9251 digital servo to substantially improve servo response and stability. The unit utilizes high-speed microcomputer processing, 12-bit A/D conversion, and Silicon Micro Machine (SMM) technology within an aeroform case to enhance vibration resistance and neutral characteristics.

What's inside

• Mounting/Operating Precautions
• Fuselage Maintenance Precautions
• Set Contents
• AVCS Gyro Operation
• LCD Display and Edit Keys
• GY601 Functions Setting
• Remote Gain Function
• Initialization

Specifications

Frequently asked questions

What special servo is required for the GY601?

The GY601 requires the use of the special S9251 servo and cannot operate with other servos.

What is the recommended battery type for the S9251 servo?

Always use an Nicd battery; a dry cell battery will not display the specified performance.

What happens if the S9251 servo is used in applications other than the GY601?

The servo may be destroyed or trouble may occur because it is designed for high-speed operation with the GY601 only.
