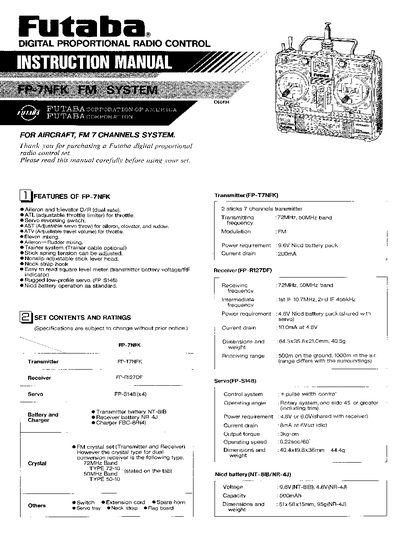

Futaba FP-7NFK Digital Proportional Radio Control Instruction Manual

Brand: Futaba
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 1.3 MB
Published: 09 August, 2012
Updated: 28 August, 2012
MD5 checksum: 001F3D8259B70A6EBA9F30C1E2A26296
PDF: Futaba FP-7NFK Digital Proportional Radio Control Instruction Manual PDF

About this manual

This document is the instruction manual for the Futaba FP-7NFK Digital Proportional Radio Control set. The system includes a 7-channel transmitter (FP-T7NFK), a dual-conversion receiver (FP-R127DF), four servos (FP-S148), and batteries, designed specifically for aircraft applications.

What's inside

Features of FP-7NFK
Set Contents and Ratings
Before Using
Function and Setting Method
Servo Reverser
Adjustable Servo Throw (AST)
Throttle Adjustable Travel Volume (ATV)
Dual Rate (D/R) Function
Mixing Functions (Elevon, Aileron-Rudder)
Precautions

Specifications

Transmitting frequency	72MHz, 50MHz band
Power requirement (Transmitter)	9.6V Nicd battery pack
Receiving frequency	72MHz, 50MHz band
Intermediate frequency (1st IF)	10.7MHz
Intermediate frequency (2nd IF)	455kHz
Receiving range (ground)	500m
Operating angle (Servo)	Rotary system, one side 45° or greater

Frequently asked questions

How many channels does the FP-7NFK system have?

The system is a 7-channel transmitter.

What type of battery is required for the receiver?

A 4.8V Nicd battery pack shared with servos is required.

Can the direction of servo operation be changed?

Yes, using the Servo Reverser function for channels 1 through 7.

What is the operating speed of the FP-S148 servo?

The operating speed is 0.22 seconds per 60 degrees.
