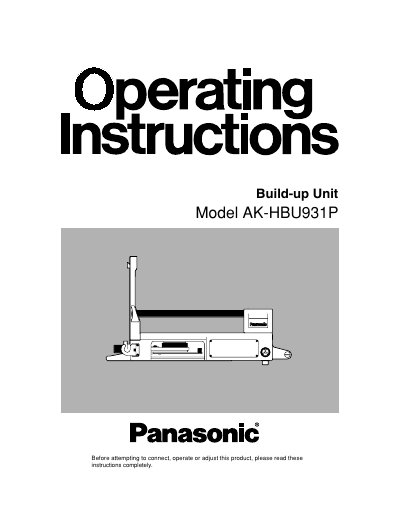

This document provides installation, operation, and adjustment instructions for the AK-HBU931P model. It includes safety precautions and explanations of symbols. The product is a class A digital apparatus that complies with relevant regulations.
The Panasonic AK-HBU931P is a build-up unit designed for use with the AK-HC931P multi-format camera. When installed, it enables a large lens to be mounted, yielding the same range of operations as a larger camera. The unit features a front panel for lens attachment and anchoring, as well as various connectors for power and signal transmission.
| Compatible Camera | AK-HC931P |
|---|---|
| Lens Type | 2/3" box-type lens |
| Operating Temperature | 32°F to 104°F (0°C to +40°C) |
| AC Outlet Capacity | 200 VA |
| Tripod Mount | 3/8-16UNC |
The unit is designed for use with the AK-HC931P multi-format camera.
It supports a 2/3" box-type lens attached via a guide.
The unit should be operated between 32°F and 104°F (0°C to +40°C).
Yes, an AC output of up to 200 VA can be supplied to the AC outlet.
