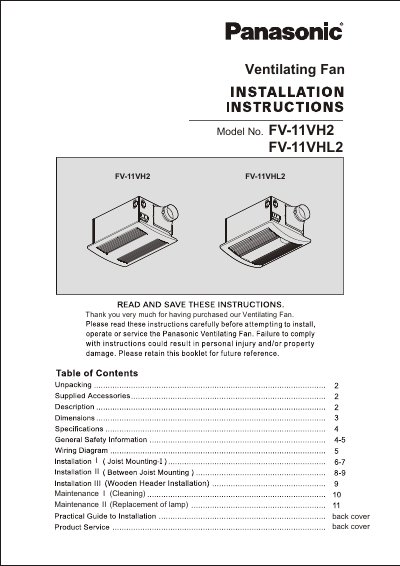

Panasonic FV-11VH2/FV-11VHL2 Ceiling Mount Ventilating Fan Installation Manual

This is a maintenance manual for the Panasonic FV-11VH2 and FV-11VHL2 ceiling fans.

Brand: Panasonic
Category: Other
Document type: Installation Guide
Language: English
Pages: 12
File format: PDF
File size: 2 MB
Published: 08 August, 2012
Updated: 30 September, 2023
MD5 checksum: 46D96C2CDA9AC6C675E5FBB627E130FB
PDF: Panasonic FV-11VH2/FV-11VHL2 Ceiling Mount Ventilating Fan Installation Manual PDF

About this manual

The document serves as an installation guide for the Panasonic FV-11VH2 and FV-11VHL2 ceiling mount ventilating fans. It details various mounting methods, including joist mounting between or on headers, and provides specific instructions for connecting the unit to a 120V 60Hz power supply.

What's inside

Unpacking
Installation (Joist Mounting)
Wiring Diagram
Maintenance (Cleaning)
Replacement of Lamp

Specifications

Voltage/Frequency	AC 120V, 60Hz
Heater Power	1400 W
Lighting Unit (FV-11VHL2)	Two 18 W fluorescent lamps
Noise Level	0.6 sone (FV-11VH2)
Fuse Rating	20A

Frequently asked questions

What is the fuse rating for this unit?

The unit requires a 20A fuse.

Can I install this unit over a bathtub or shower enclosure?

No, you must not install the unit over a bathtub or shower enclosure.

What type of motor does this fan use?

The fans use a capacitor motor designed for extended service life with reduced energy consumption.

Download PDF (2 MB)
