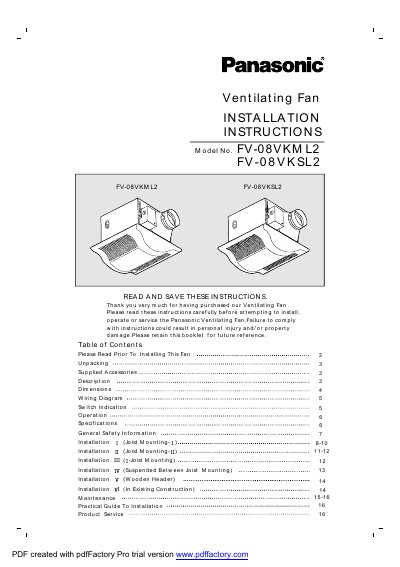

Panasonic FV-08VKML2/FV-08VKSL2 Ventilating Fan Installation Instructions

Panasonic's Ventilating Fan FV-08VKML2/FV-08VKSL2 installation instructions.

Brand: Panasonic
Category: Other
Document type: Installation Guide
Language: English
Pages: 16
File format: PDF
File size: 889 KB
Published: 08 August, 2012
Updated: 30 September, 2023
Models: FV-08VKML2, FV-08VKSL2
MD5 checksum: D690004794E718452409695AA522CEA5
PDF: Panasonic FV-08VKML2/FV-08VKSL2 Ventilating Fan Installation Instructions PDF

About this manual

This document provides installation instructions for the Panasonic FV-08VKML2 and FV-08VKSL2 ventilating fans. These models feature a DC motor with CustomVent™ variable speed control and SmartFlow™ microchip technology to optimize performance based on static pressure. The FV-08VKML2 includes an optional SmartAction™ motion sensor, while the FV-08VKSL2 operates via a manual wall switch.

What's inside

Please Read Prior To Installing
Unpacking
Description
Dimensions
Wiring Diagram
Operation
Specifications
General Safety Information

Frequently asked questions

What is the detection range of the motion sensor?

The distance that motion can be detected is limited to 10 feet (3m).

What is the field of view for the sensor?

The field of view of the sensor is 90°.
