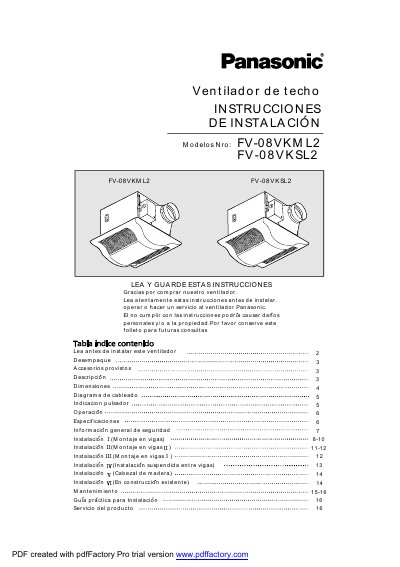

Panasonic FV-08VKML2/FV-08VKSL2 Ventilating Fan Installation Instructions

This document is an installation manual for FV-08VKML2 and FV-08VKSL2 ceiling fans. It describes the installation method, operation method, maintenance method and other information of the ceiling fans.

Brand: Panasonic
Category: Other
Document type: Installation Guide
Language: English
Pages: 16
File format: PDF
File size: 889 KB
Published: 08 August, 2012
Updated: 30 September, 2023
Models: FV-08VKML2, FV-08VKSL2
MD5 checksum: 986140D50F9AC4A9171D501EA0AD6DA5
PDF: Panasonic FV-08VKML2/FV-08VKSL2 Ventilating Fan Installation Instructions PDF

About this manual

This document provides installation instructions for the Panasonic FV-08VKML2 and FV-08VKSL2 ventilating fans. These WhisperGreen™ models feature CustomVent™ variable speed control, SmartFlow™ microchip technology for static pressure monitoring, and DC motor technology for energy efficiency.

What's inside

Please Read Prior To Installing
Unpacking
Description
Dimensions
Wiring Diagram
Operation
Specifications
General Safety Information

Specifications

Voltage	120V, 60Hz
Duct Diameter	4 inches
Air Delivery at 0.1" WG	80 CFM

Frequently asked questions

What is the detectable range of the motion sensor?

The distance that motion can be detected is limited to 10 feet (3m).

What is the field of view for the motion sensor?

The field of view of the sensor is 90°.
