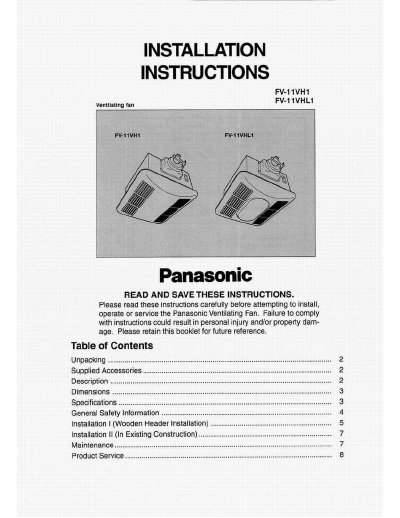

Panasonic FV-11VH1/FV-11VHL1 Ventilating Fan Installation and Maintenance Manual

Brand: Panasonic
Category: Other
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 953 KB
Published: 08 August, 2012
Updated: 30 August, 2012
MD5 checksum: 9360F75FD51BFEB57AEC87F4A87C6CC0
PDF: Panasonic FV-11VH1/FV-11VHL1 Ventilating Fan Installation and Maintenance Manual PDF

About this manual

This manual provides installation instructions for the Panasonic FV-11VH1 and FV-11VHL1 ceiling mount ventilating fan models. The units utilize a sirocco fan driven by a capacitor motor and include features such as a damper for preventing counterflow and a thermal-cutoff for safety. The FV-11VHL1 model also includes a light kit with fluorescent lamps and a heater.

What's inside

Supplied Accessories
Description
Dimensions
General Safety Information
Installation I (Wooden Header Installation)
Installation II (In Existing Construction)
Maintenance
Product Service

Specifications

Power consumption	120 W (Heat) / 18 W (Vent) / 18 W (Light)
Speed	1424 RPM
Air delivery	25.5 CFM
Weight	9.21 kg (20 lb)
Voltage	120V, 60 Hz
Heater wattage	1400 watt

Frequently asked questions

What is the maximum air temperature for installation?

Do not install this ventilating fan where air temperature may exceed 40°C (104°F).

How often should routine maintenance be done?

Routine maintenance must be done every year.
