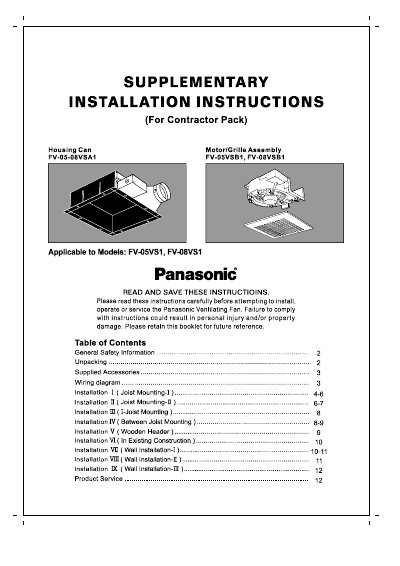

Panasonic FV-05VS1 FV-08VS1 Ventilating Fan Installation Instructions

About this manual

This document provides supplementary installation instructions for the Panasonic FV-05VS1 and FV-08VS1 ventilating fan system, which consists of a Housing Can (FV-05-08VSA1) and a Motor/Grille Assembly (FV-05/08VSB1). The guide details safety precautions, unpacking, and wiring diagrams before proceeding with specific mounting procedures.

What's inside

• General Safety Information
• Unpacking
• Supplied Accessories
• Wiring Diagram
• Joist Mounting
• I-Joist Mounting
• Between Joist Mounting
• Wall Installation
• Product Service

Specifications

Frequently asked questions

Can this fan be used in a cooking area?

No, the unit is for general ventilating use only and is not for use in a cooking area.

Is the fan UL listed for use over a bathtub?

Yes, the unit is UL listed for use over a bathtub or shower when installed in a GFCI protected branch circuit.

What is the minimum height for installation above the floor?

The fan must be installed at least 1.5m (5 feet) above the floor.
