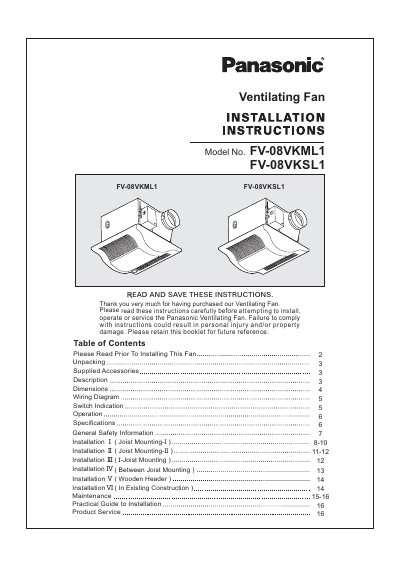

Panasonic FV-08VKML1/FV-08VKSL1 Ventilating Fan Installation Instructions

This document provides instructions for installing, operating, and servicing the Panasonic Ventilating Fan, as well as describing the features and characteristics of the product.

Brand: Panasonic
Category: Other
Document type: Installation Guide
Language: English
Pages: 16
File format: PDF
File size: 1.2 MB
Published: 08 August, 2012
Updated: 28 September, 2023
MD5 checksum: 3F572592808FF21B467A274E6ECFC46A
PDF: Panasonic FV-08VKML1/FV-08VKSL1 Ventilating Fan Installation Instructions PDF

About this manual

This document provides installation instructions for the Panasonic WhisperGreen™ line of ventilating fans, models FV-08VKML1 and FV-08VKSL1. These units feature a brushless DC motor with CustomVent™ Variable Speed Control and SmartFlow™ microchip technology to optimize air delivery based on static pressure.

What's inside

Unpacking
Description
Dimensions
Wiring Diagram
Switch Indication
Operation
Specifications
General Safety Information
Installation I (Joist Mounting-I)
Maintenance

Specifications

Voltage	120 V, 60 Hz
Lighting unit	2 x 18W Fluorescent lamp
Weight	165 lb.

Frequently asked questions

What is the factory setting for low speed air volume?

The factory setting for the low speed air volume preset switch is 50 CFM.

What is the default delay time for high/low speed switching?

The factory setting for the High/Low delay time preset switch is 20 minutes.

Can this fan be used in a cooking area?

No, the unit must not be installed above or inside a cooking area.
