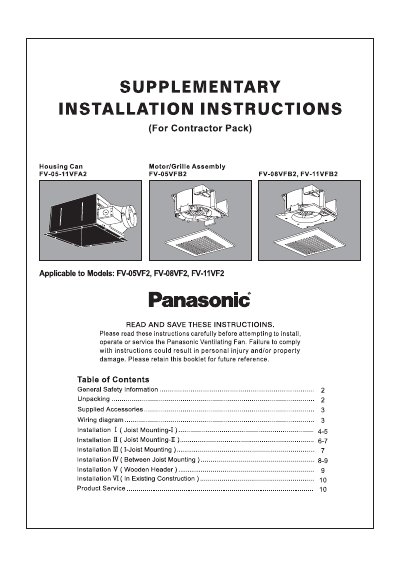

This document provides supplementary installation instructions for the Panasonic FV-05VF2, FV-08VF2, and FV-11VF2 housing can motor/grille assemblies. It details safety precautions, unpacking procedures, and wiring diagrams specific to these models.
The guide outlines various mounting methods including Joist Mounting (I), I-Joist Mounting (II), Between Joist Mounting (IV), Wooden Header Mounting (V), and Installation in Existing Construction (VI). It includes specific instructions for selecting suspension brackets based on joist spacing and provides step-by-step procedures for securing the unit to the ceiling structure.
| Voltage | 120 V, 60 Hz |
|---|---|
| Max Temperature | 40°C (104°F) |
No, the product is for general ventilating use only and must not be installed above or inside a cooking area.
Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards.
Yes, this unit is UL listed for use over a bathtub or shower when installed in a GFCI protected branch circuit.
