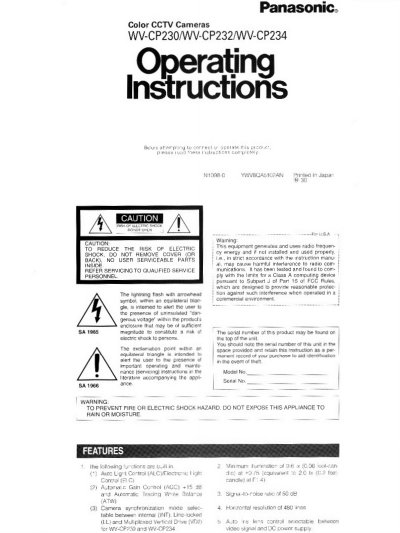

This manual provides instructions for the Panasonic WV-CP230, WV-CP232, and WV-CP234 Color CCTV Cameras. It details the operating controls, including synchronization modes, light control selectors, and aperture settings. The document also explains how to connect power sources and install optional auto iris lenses.
| Pick-up Device | 768 (H) x 494 (V) pixels, Interline Transfer CCD |
|---|---|
| Scanning System | 2: 1 interlace |
| Scanning | 525 lines / 60 fields / 30 frames |
| Horizontal Resolution | 480 lines |
| Ambient Operating Temperature | -10°C - +50°C (14°F - 122°F) |
| Power Source (WV-CP230) | 120 V AC 60 Hz |
| Power Consumption (WV-CP232) | 12 V DC, 270 mA |
| Power Consumption (WV-CP234) | 24 V AC 60 Hz, 3.7 W |
The cameras should be operated where the temperature is between -10°C and +50°C (14°F - 122°F).
The WV-CP230 requires a 120 V AC 60 Hz power source.
