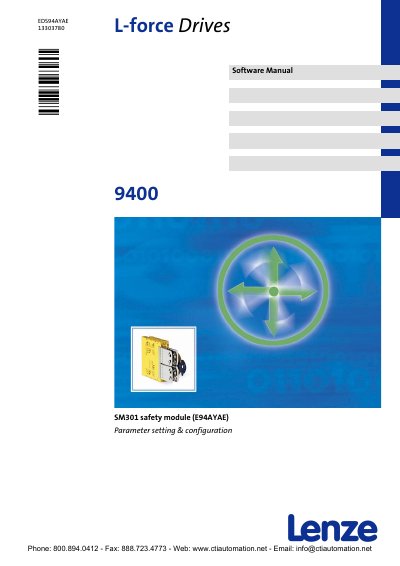

This manual describes the parameter setting and configuration of the SM301 safety module for 9400 L-force servo drives.
This manual provides technical guidance on how to parameterize, configure, and diagnose the SM301 safety module when attached to the Servo Drives 9400 series. It is intended for users employing the L-force »Engineer« engineering software to manage the safety functions of the drive system.
The document covers project planning, selection, mounting, wiring, and detailed parameter settings within the controller and the Lenze Engineer software. It includes instructions on safe configuration changes, importing/exporting parameters, managing passwords, and utilizing specific safety functions such as Safe Stop (SS1/SS2), Safe Torque Off (STO), and Safe Speed Limitation.
| Supported Safety Level | IEC 61508 up to SIL 3 |
|---|---|
| EN ISO 13849-1 Category | up to control category 4 |
| EN ISO 13849-1 Performance Level | PL e |
The L-force »Engineer« engineering software is used to parameterise, configure, and diagnose an SM301 safety module.
The module monitors safe compliance with limit values and provides safe inputs and outputs for protecting persons working on machines.
The documentation addresses persons who want to parameterize, configure, and diagnose an SM301 safety module using the L-force Engineer engineering software.
