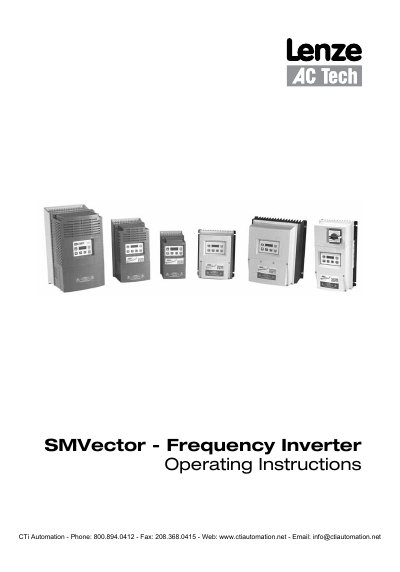

Lenze SMVector Frequency Inverter Operating Instructions

This document is the operating instructions for the SMVector frequency inverter, providing information on installation, commissioning, and parameter setting.

Brand: Lenze
Category: Industrial Robot
Document type: User Manual
Language: English
Pages: 62
File format: PDF
File size: 2.5 MB
Published: 07 August, 2012
Updated: 28 September, 2023
MD5 checksum: 0801E65F2F96DB6C97B3014A7C7B5939
PDF: Lenze SMVector Frequency Inverter Operating Instructions PDF

About this manual

This manual provides operating instructions for the Lenze SMVector frequency inverter, specifically for units with software revision 4.23 or higher. It covers the entire lifecycle of the drive, from initial safety checks and installation to commissioning and parameter configuration.

What's inside

Safety Information
Technical Data
Installation
Commissioning
Parameter Setting
Troubleshooting and Diagnostics

Specifications

Software Revision	4.23 or higher
Input Voltage	3 (3/PE) 400/480 V
Output Frequency	0 - 500 HZ

Frequently asked questions

What software revision is required for these instructions?

These instructions are only valid for SMV frequency inverters with software revision 4.23 or higher.

Who should perform the installation and commissioning?

All operations concerning transport, installation, and commissioning must be carried out by qualified, skilled personnel.

Download PDF (2.5 MB)
