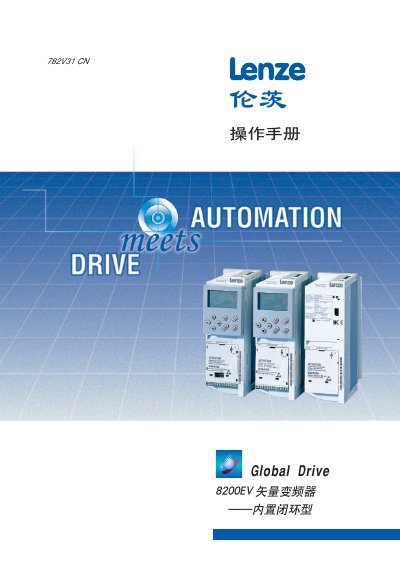

Lenze 782V31 CN 8200EV Variable Frequency Drive Operation Manual

About this manual

The document introduces the Lenze 8200 Vector variable frequency drive, covering safety precautions, installation guidelines, and general operating conditions. It explains the drive's hardware versions, power ratings, and voltage options.

Further sections detail parameter configuration, communication interfaces such as INTERBUS, PROFIBUS‑DP, CAN, and RS‑232/RS‑485, as well as fault diagnosis and control mode settings for various applications. This manual is written in Chinese.

What's inside

• Foreword and Overview
• Safety Precautions
• General Data / Operating Conditions
• Parameter Settings
• Communication Interfaces
• Installation
• Control Modes
• Fault Diagnosis

Specifications

Frequently asked questions

What safety precautions should be followed when operating the Lenze 8200 drive?

Refer to section 2.1 “Lenze 控制問安全和記用注意事項” for required safety measures, including use of RCCB protection and personal protective equipment.

Which communication interfaces are supported by the Lenze 8200 variable frequency drive?

The drive supports INTERBUS, PROFIBUS‑DP, LECOM‑B (RS485), CAN, and RS‑232/RS‑485 interfaces.

What are the available voltage options for the Lenze 8200 drive?

The drive can be configured for 240 V or 400 V/500 V supply.
