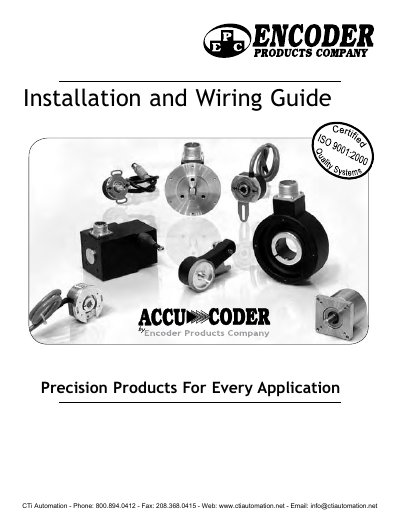

This document is about the installation and wiring guide, which introduces the features and characteristics of EPC's Accu-CoderTM brand of incremental and absolute shaft encoders.
This guide provides instructions for the installation and wiring of EPC Accu-Coder brand encoders. It covers mechanical mounting procedures, including the use of accessories like mounting brackets and flexible couplings, and emphasizes proper alignment to prevent damage.
The product comes with a three year standard warranty against defects in materials and workmanship.
You must use a correctly sized flexible shaft coupling and never use a rigid coupling.
The recommended torque range for these bolts is 180 to 240 oz-in.
