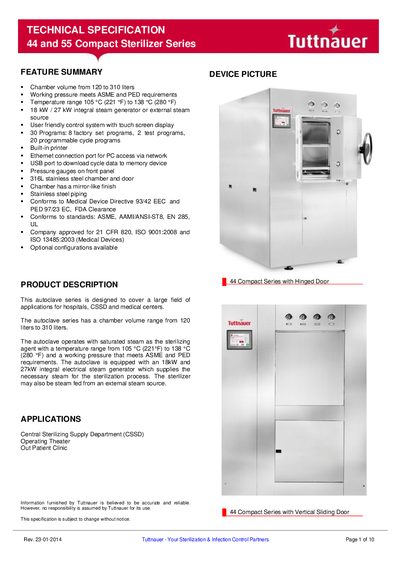

Technical specification sheet for the Tuttnauer 44 and 55 Compact Sterilizer Series, detailing chamber volumes, electrical requirements, safety features…
This document provides technical specifications for the Tuttnauer 44 and 55 Compact Sterilizer Series. The series is designed for applications in Central Sterilizing Supply Departments (CSSD), operating theaters, and outpatient clinics. It covers chamber volumes ranging from 120 to 310 liters with options for both manual hinged doors and automatic vertical sliding doors.
| Chamber Volume Range | 120 to 310 liters |
|---|---|
| Temperature Range | 105 °C (221°F) to 138 °C (280°F) |
| Steam Generator Power | 18 kW or 27 kW integral |
| Chamber Material | 316L stainless steel |
| Door Gasket Material | Silicone gasket |
| Insulation Material | 1" chloride free glass wool |
The operator display is available in 26 languages including English, Spanish, German, Dutch, Russian, Chinese, and Arabic.
No, it can use an 18kW or 27kW integral electrical steam generator, though it may also be steam fed from an external steam source.
