Technical specifications and features for Tuttnauer M Series manual sterilizers including chamber dimensions, cycle times, voltage requirements, and…

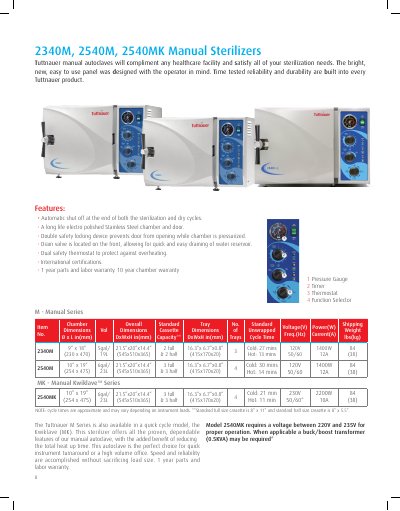

This document provides technical specifications for the Tuttnauer M Series Manual Sterilizers (models 82340M, 2540M) and the Kwiklave™ series (model 2540MK). Key data includes chamber dimensions, overall unit size, cassette capacity, tray dimensions, standard unwrapped cycle times for cold and hot sterilization, electrical requirements, power consumption, shipping weight, and warranty information.
| Model 82340M Chamber Volume | 5gal/ 19L |
|---|---|
| Model 82340M Overall Dimensions | 21.5”x20”x14.4” (545x510x365) |
| Model 82340M Standard Cassette Capacity | 2 full & 2 half |
| Model 82340M Cold Cycle Time | Cold: 27 mins |
| Model 82340M Hot Cycle Time | Hot: 13 mins |
| Model 2540M Chamber Volume | 6gal/ 23L |
| Model 2540M Standard Cassette Capacity | 3 full & 3 half |
| Model 2540MK Voltage Requirement | 230V 50/60* |
| Model 2540MK Power Consumption | 2200W 10A |
| Parts and Labor Warranty | 1 year parts and labor warranty |
| Chamber Warranty | 10 year chamber warranty |
The cold cycle takes 27 minutes and the hot cycle takes 13 minutes.
Yes, Model 2540MK requires a voltage between 220V and 235V for proper operation.
The units include a 1 year parts and labor warranty and a 10 year chamber warranty.
