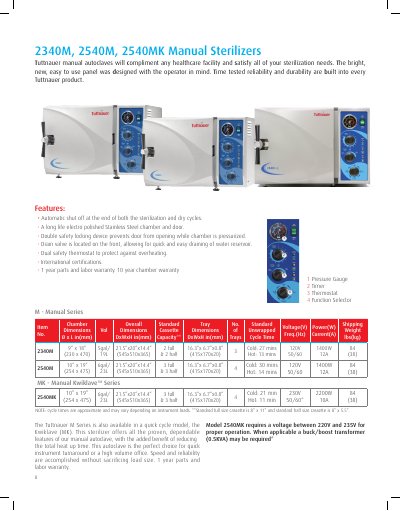

Technical specifications and features for Tuttnauer 82340M, 2540M, and 2540MK manual sterilizers.
The Tuttnauer M Series manual sterilizers provide reliable, high‑capacity autoclave performance for healthcare facilities. Models 82340M, 2540M and 2540MK share a stainless‑steel chamber, automatic shut‑off, double safety locking, and a front‑mounted drain valve. The Kwiklave™ (MK) version adds a quick‑cycle option for faster turnaround.
Key specifications include chamber dimensions, volume, overall size, cassette capacity, tray dimensions, cycle times, electrical requirements and shipping weight. All models carry a 1‑year parts‑and‑labor warranty plus a 10‑year chamber warranty.
| Chamber Dimensions | Ø x L in(mm) |
|---|---|
| Volume | 5 gal / 19 L (82340M), 6 gal / 23 L (2540M, 2540MK) |
| Overall Dimensions | 21.5" × 20" × 14.4" (545 × 510 × 365 mm) |
| Standard Cassette Capacity | 2 full & 2 half (82340M), 3 full & 3 half (2540M, 2540MK) |
| Tray Dimensions | 16.3" × 6.7" × 0.8" (415 × 170 × 20 mm) |
| Cold Cycle Time | 27 min (82340M), 30 min (2540M), 21 min (2540MK) |
| Hot Cycle Time | 13 min (82340M), 14 min (2540M), 11 min (2540MK) |
| Voltage | 120 V 50/60 Hz (82340M, 2540M), 230 V 50/60 Hz (2540MK) |
| Warranty | 1 year parts & labor, 10 year chamber |
They have automatic shut‑off at the end of sterilization and dry cycles, a double safety locking device, and a dual safety thermostat to protect against overheating.
Tuttnauer offers a 1‑year parts and labor warranty and a 10‑year warranty on the stainless‑steel chamber.
The 2540MK has a cold cycle of approximately 21 minutes and a hot cycle of about 11 minutes.
The 2540MK requires a voltage between 220 V and 235 V, typically 230 V 50/60 Hz.
