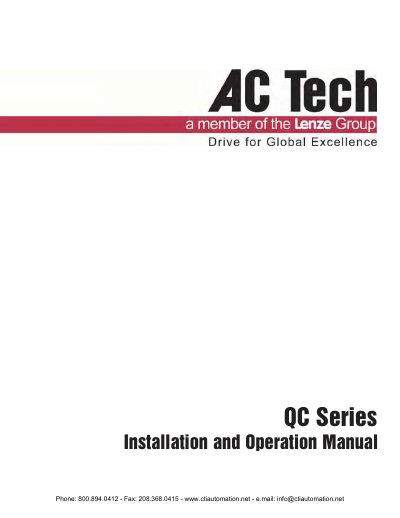

This manual covers the AC Tech QC1000, QC2000, and QC3000 Variable Frequency Drives
This manual provides installation and operating instructions for the AC Tech QC Series Variable Frequency Drives (VFDs), specifically models QC1000, QC2000, and QC3000. It details product specifications including temperature ranges, voltage tolerances, and output capabilities.
| Storage Temperature | -20 ° to 70° C |
|---|---|
| Ambient Operating Temperature (Chassis) | -10 to 50 ° C |
| Input Line Voltages | 200/240 Vac, 400/480 Vac, and 480/590 Vac |
| Output Frequency (Standard) | 0-120 Hz |
| Efficiency | 97% or better |
The warranty covers defects in material and workmanship for eighteen months from the date of sale, or two years from the date of shipment.
The drives have an overload current capacity of 150% for one minute based on their output current rating.
