STF2907A is a small signal PNP transistor suitable for portable equipment, with high gain and low saturation voltage.

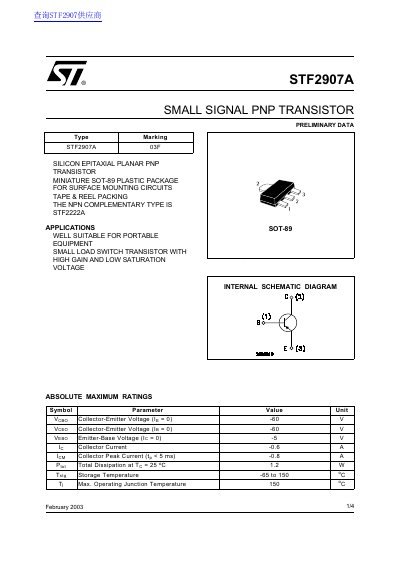

This document provides preliminary technical information for the STF2907A, a silicon epitaxial planar PNP transistor housed in a miniature SOT-89 plastic package designed for surface mounting. The device is suitable for portable equipment applications requiring small load switching with high gain and low saturation voltage.
| Collector-Emitter Voltage (Vceo) | -60 V |
|---|---|
| Collector Current (Ic) | -0.6 A |
| Total Dissipation at Tc = 25 °C | 1.2 W |
| Thermal Resistance Junction-Ambient (RthJA) | 104.1 °C/W |
| DC Current Gain (hFE) at Ic = -150 mA | 75 to 300 |
| Transition Frequency (fT) | 200 MHz |
The NPN complementary type is STF2222A.
It uses a miniature SOT-89 plastic package for surface mounting circuits.
Yes, it is well suited for portable equipment.
