STP6NK70Z is an N-channel 700V - 1.5Ω - 5A TO-220/TO-220FP Zener-Protected SuperMESH™MOSFET produced by ST company, which has the characteristics of typical RDS(on) = 1.5 Ω, extremely high dv/dt capability, improved ESD capability, 100% Avalanche Rated, minimized Gate Charge, very low Intrinsic Capacitances, and very good manufacturing repeatability.

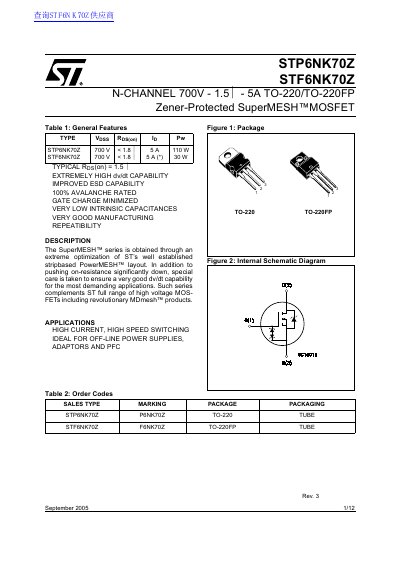

This document describes the STP6NK70Z and STF6NK70Z, which are N-channel 700V - 1.5Q - 5A TO-220/TO-220FP Zener-Protected SuperMESH™ MOSFETs. These devices offer extremely high dv/dt capability and improved ESD protection suitable for demanding applications.
| Package Types | TO-220 / TO-220FP |
|---|---|
| Operating Junction Temperature | -55 to 150 °C |
They are ideal for high current, high speed switching and off-line power supplies, adaptors and PFC.
No, the built-in back-to-back Zener diodes avoid the usage of external components.
