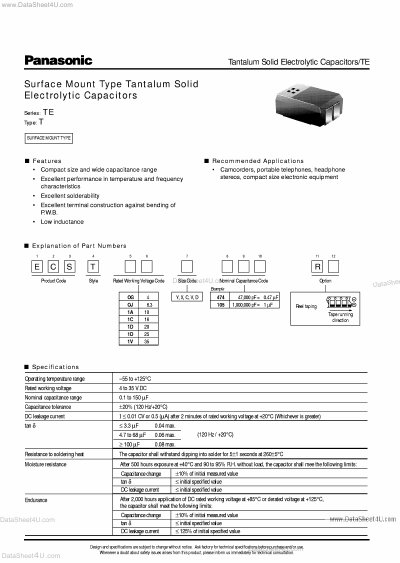

This document provides technical information for the Panasonic TE series of surface mount tantalum solid electrolytic capacitors. It highlights key features such as compact size, excellent performance in temperature and frequency characteristics, and low inductance. The capacitors are recommended for applications including camcorders, portable telephones, and headphone stereos.
| Operating temperature range | -56 to +125°C |
|---|---|
| Rated working voltage | 4 to 35 V.DC |
| Nominal capacitance range | 0.1 to 150 pF |
| Capacitance tolerance | +20% (120 Ha/+20°C) |
| DC leakage current | I< 0.01 CV or 0.5 (1A) |
| Resistance to soldering heat | 5+1 seconds at 260+5°C |
They are recommended for camcorders, portable telephones, headphone stereos, and compact size electronic equipment.
The capacitance tolerance is +20% at 120 Hz and +20°C.
