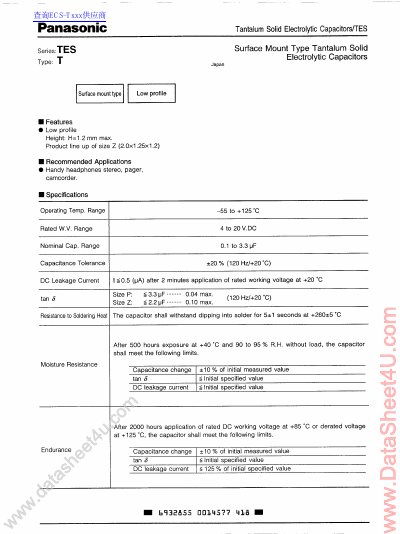

This document provides technical specifications for the Panasonic TES series of surface mount type tantalum solid electrolytic capacitors. Key features include a low profile height of 1.2 mm maximum, making it suitable for compact applications such as headphones, pagers, and camcorders.
The datasheet details operating conditions including temperature ranges from -55 to +125 °C and rated working voltages up to 20V DC. It also includes specific performance limits for capacitance tolerance, leakage current, soldering heat resistance, moisture resistance, and endurance.
| Operating Temp. Range | -55 to +125 °C |
|---|---|
| Rated W.V. Range | 4 to 20V.DC |
| Nominal Cap. Range | 0.1 to 3.3 uF |
| Capacitance Tolerance | +20 % (120 Hz/+20 °C) |
| Height | H=1.2 mm max. |
They are recommended for handy headphones, stereo, pagers, and camcorders.
It shall withstand dipping into solder for 5+1 seconds at +260+5 °C.
