This is a monitor instruction manual, which explains the use and precautions of the monitor.

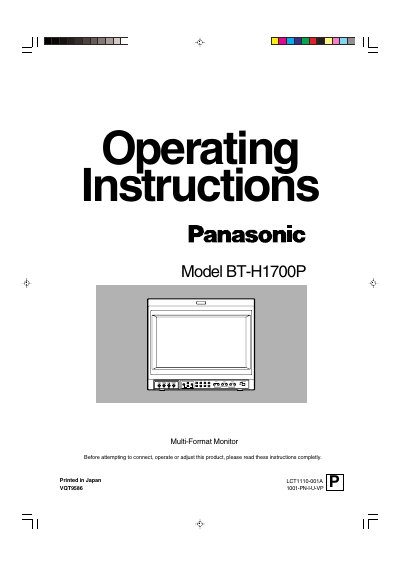

This manual provides instructions for the Panasonic BT-H1700P multi-format monitor. It details safety precautions, including warnings about high voltage and the need for qualified service personnel. The document explains the functions of the front and rear panel controls, such as the phase, chroma, brightness, and contrast adjustment knobs, as well as various buttons for degaussing, under-scan, and input selection.
| Power Source | 120 V/ AC, 60 Hz |
|---|---|
| Power Input Connector | 120 V/230 V AC, 50 Hz/60 Hz |
No, do not attempt to modify or disassemble the monitor as there are no user-serviceable parts inside.
Turn the PHASE adjustment knob to the left to make the picture redder and to the right to make it greener.
The tally lamp lights when the tally control signal is ON, which is input through the MAKE remote terminal.
