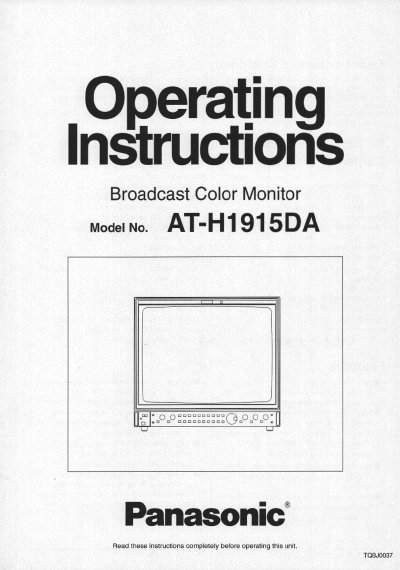

This manual provides operating information for the Panasonic AT-H1915DA Broadcast Color Monitor. The unit is designed to observe color video signals and offers excellent performance and stability for 1080i, 480p, and 480i television systems. It features a 19-inch in-line stripe CRT with a resolution of approximately 900 lines and supports various input signals including analog component, HD/sync, VD, and optional NTSC video composite signals.
| Television systems | 1080i, 480p, 480i |
|---|---|
| CRT Type | 19-inch, 90° deflection, in-line gun, shadow mask |
| Mask pitch | 0.28 mm |
| Resolution | approx. 900 lines |
| Power Supply | AC 120 V + 10%, 50/60 Hz |
| Power consumption | Max. 450 VA |
| Operating temperature range | 32 ~ 104°F (0 ~ 40°C) |
| High voltage | 24 kV + 500 V |
The monitor supports 1080i, 480p, and 480i television systems.
The resolution is approximately 900 lines.
It operates on AC 120 V + 10%, 50/60 Hz.
