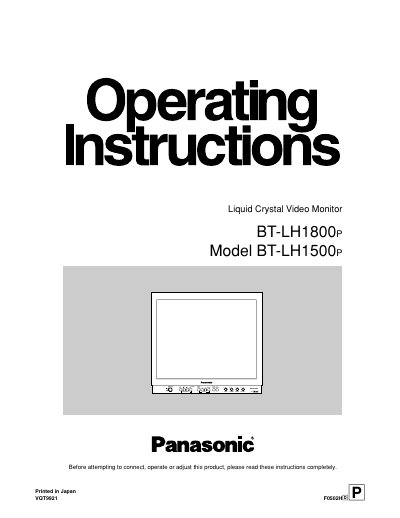

Panasonic BT-LH1800P/BT-LH1500P Liquid Crystal Video Monitor Instructions

Liquid Crystal Video Monitor BT-LH1800P and BT-LH1500P User's Instructions

Brand: Panasonic
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 28
File format: PDF
File size: 1.5 MB
Published: 06 August, 2012
Updated: 30 September, 2023
MD5 checksum: 14CFB56796FEB7563D3158432F684760
PDF: Panasonic BT-LH1800P/BT-LH1500P Liquid Crystal Video Monitor Instructions PDF

About this manual

This document provides operating instructions for the Panasonic BT-LH1800P (18.1-inch) and BT-LH1500P (15-inch) thin, light-weight wide-view industrial liquid crystal monitors. These units are designed for industrial use and support various signal formats including HD, NTSC, and PAL.

What's inside

For Your Safety
Precautions for Use
Outline
Controls and Their Functions
How To Use On Screen Menu
MARKER Settings
VIDEO CONFIG
SYSTEM CONFIG
REMOTE CONFIG
MAINTENANCE

Specifications

Screen Size (BT-LH1800)	18.1-inch
Screen Size (BT-LH1500)	15-inch
Voltage Range	100 - 240 VAC
Pixel Defect Tolerance	0.01% or less

Frequently asked questions

Who should operate this product?

This product is specially designed for industrial use and must be operated by a person having technical knowledge.

What happens if a still image is displayed for a long time?

It may cause temporary generation of afterimage (phosphor burn-in), which disappears when an ordinary mobile image is displayed.

Can the unit be installed in direct sunlight?

No. Do not install the unit in a place exposed to direct sunlight as it may deteriorate the cabinet or damage the screen.
