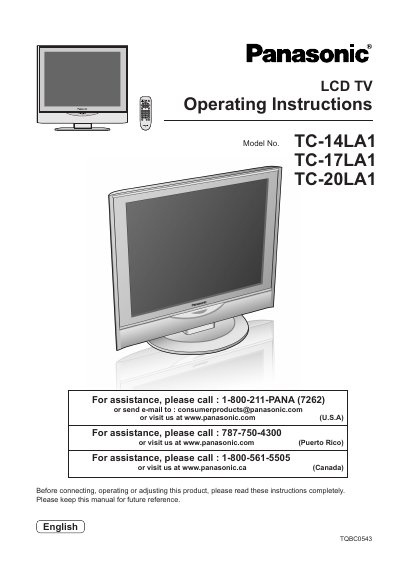

Panasonic TC-14LA1/TC-17LA1/TC-20LA1 LCD TV Operating Instructions

About this manual

This manual provides operating instructions for the Panasonic TC-14LA1, TC-17LA1, and TC-20LA1 LCD TVs. It includes important safety instructions, installation guidelines, and details on connecting peripherals such as antennas, VCRs, and headphones. The document also covers basic controls, menu navigation, and channel tuning procedures.

What's inside

• Important Safety Instructions
• Installation
• Remote control battery installation
• Connections
• Power ON / OFF
• Playing a VCR or other peripheral equipment
• Basic Controls
• Tuning channels
• Picture Adjustments
• Audio Adjustments

Frequently asked questions

What is the minimum space required between the TV and ventilation openings?

There must be at least 10 cm of space from the ventilation openings to ensure reliable operation and prevent overheating.

What steps should be taken to prevent permanent shadow images on the LCD panel?

To limit irreversible deterioration, reduce brightness/contrast to a minimum, avoid displaying fixed images for extended periods, and turn the power off when not in use.

When should the TV be unplugged from the wall outlet?

You should unplug the TV during lightning storms or when it is unused for long periods of time to prevent damage from surges.
