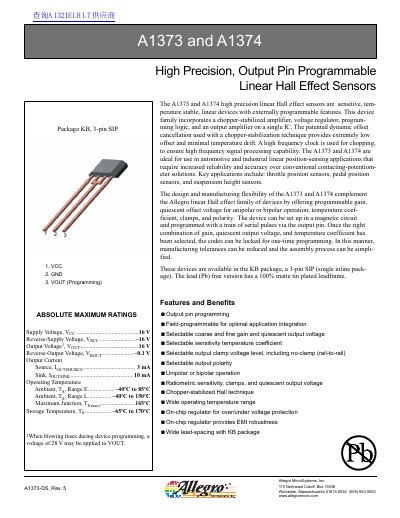

The A1373 and A1374 high precision linear Hall effect sensors are ideal for use in automotive and industrial linear position-sensing applications that require increased reliability and accuracy over conventional contacting-potentiom- eter solutions.
The A1373 and A1374 are high precision, linear Hall effect sensors featuring a chopper-stabilized amplifier and voltage regulator on a single IC. These devices incorporate patented dynamic offset cancellation to provide extremely low offset and minimal temperature drift, making them ideal for automotive and industrial linear position-sensing applications such as throttle and pedal position sensors.
| Supply Voltage | 4.5 to 5.5 V |
|---|---|
| Supply Current | 8.2 to 10 mA |
| Chopping Frequency | 200 kHz |
| Internal Bandwidth (A1373) | 25 kHz |
| Internal Bandwidth (A1374) | 20 kHz |
| Output Noise (A1373) | 6 to 16 mV peak-to-peak |
| Output Noise (A1374) | 12.5 to 14 mV peak-to-peak |
| Output Resistance | 1.5 Ohms |
| Operating Temperature Range (E) | -40°C to 85°C |
| Operating Temperature Range (L) | -40°C to 150°C |
They are ideal for use in automotive and industrial linear position-sensing applications that require increased reliability and accuracy over conventional contacting-potentiometer solutions.
The devices can be programmed with a train of serial pulses via the output pin to set gain, quiescent output voltage, and temperature coefficient.
These devices are available in the KB package, which is a 3-pin SIP (single inline package).
