The A2526EL/M and A2536EL/M are integrated high-side dual power switches, optimized for self-powered and bus-powered Universal Serial Bus (USB) applications. Few external components are necessary to satisfy USB requirements. Each switch channel supplies up to 500 mA as required by USB peripheral devices. In addition, the switch’s low on-resistance permits achieving the USB voltage-drop requirements. Fault current is limited to typically 750 mA, satisfying the UL 25 VA safety requirements, and a flag output is available to indicate a fault condition to the local USB controller. Momentary voltage drops that may occur on the upstream port when the switch is enabled in bus-powered applications is eliminated by a “soft start” feature. Additional features include thermal shutdown to prevent catastrophic switch failure from high-current loads, undervoltage lockout to ensure that the device remains OFF unless there is a valid input voltage present, and 3.3 V and 5 V logic-compatible enable inputs. These switches are provided in 8-pin mini-DIP (suffix ‘M’) and 8-lead SOIC (suffix ‘L’) packages.

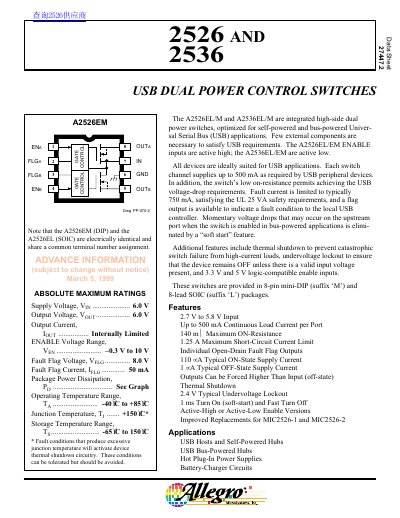

This document is a technical datasheet for the Allegro Microsystems A2526 and A2536, which are integrated high-side dual power control switches optimized for Universal Serial Bus (USB) applications. These devices supply up to 500 mA per channel with low on-resistance and include features such as thermal shutdown, undervoltage lockout, and fault flag outputs.
| Supply Voltage Range | 2.7 V to 5.8 V |
|---|---|
| Maximum Load Current per Port | 500 mA |
| Maximum ON-Resistance | 140 mΩ |
| Short-Circuit Current Limit | 1.25 A |
Each output can supply up to 500 mA.
Yes, they are optimized for self-powered and bus-powered Universal Serial Bus applications.
An internal thermal shutdown circuit activates to prevent catastrophic switch failure.
