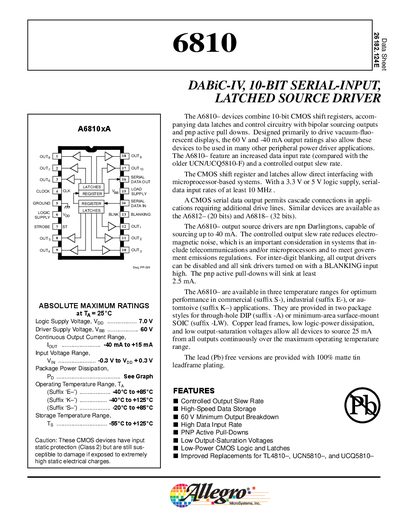

This data sheet provides detailed information on the DABiC-IV, 10-BIT SERIAL-INPUT, LATCHED SOURCE DRIVER A6810xA, including absolute maximum ratings, pin descriptions, package, logic supply voltage, driver supply voltage, continuous output current range, input voltage range, package power dissipation, operating temperature range, storage temperature range, cautions, design features, application circuit diagrams, and application examples.
The A6810 series combines 10‑bit CMOS shift registers, data latches, and bipolar sourcing outputs for driving vacuum‑fluorescent displays and other peripheral loads. It supports 3.3 V or 5 V logic, serial data rates of at least 10 MHz, and cascadeable serial outputs.
Available in three temperature grades (commercial, industrial, automotive) and in through‑hole DIP or surface‑mount SOIC packages, the devices feature controlled output slew rate, active PNP pull‑downs, and low output‑saturation voltages. Lead‑free versions use matte tin plating.
Yes, lead‑free versions are provided with 100 % matte tin leadframe plating.
