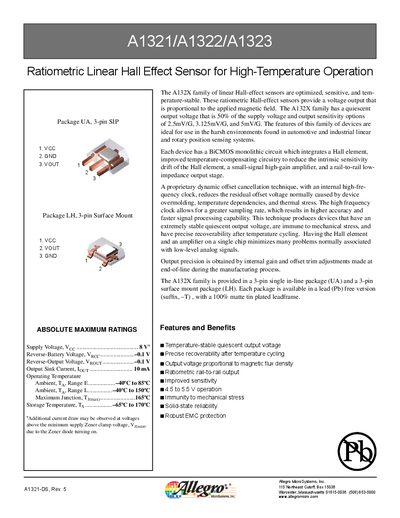

The A132X family of linear Hall-effect sensors are optimized, sensitive, and temperature-stable. These ratiometric Hall-effect sensors provide a voltage output that is proportional to the applied magnetic field. The A132X family has a quiescent output voltage that is 50% of the supply voltage and output sensitivity options of 2.5mV/G, 3.125mV/G, and 5mV/G. The features of this family of devices are ideal for use in the harsh environments found in automotive and industrial linear and rotary position sensing systems. Each device has a BiCMOS technology.
The A1321/A1322/A1323 family consists of ratiometric linear Hall effect sensors optimized for high-temperature operation. These devices provide a voltage output proportional to the applied magnetic field and feature a quiescent output voltage of 50% of the supply voltage. The family offers sensitivity options of 2.5mV/G, 3.125mV/G, and 5mV/G.
| Supply Voltage | 4.5 to 5.5 V |
|---|---|
| Output Bandwidth | 30 kHz |
| Clock Frequency | 150 kHz |
The quiescent output voltage is 50% of the supply voltage.
The available sensitivity options are 2.5mV/G, 3.125mV/G, and 5mV/G.
The devices are available in a 3-pin single in-line package (UA) and a 3-pin surface mount package (LH).
