Fiberstars BLK-DL-45 Lighted Bubbler Deluxe Installation Guide

Fiberstars Lighted Bubbler Deluxe is a very simple device to provide lighted water for small fountains and sun shelf areas. The Lighted Bubbler Deluxe is pre-assembled for easy connection to a water supply line and a conduit connection for the fiber. The fiber is already connected to the bubbler and comes with 45 feet of 75 strand fiber pre-attached. Water Surface 5” to 6” Max

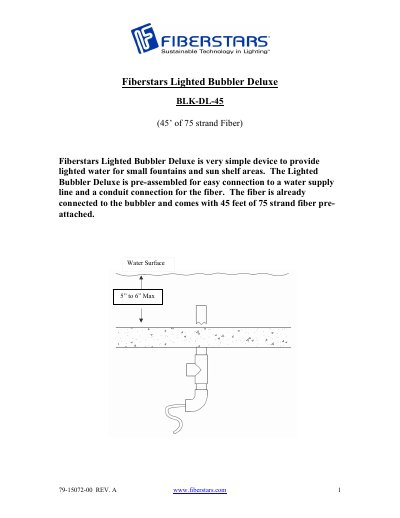

Fiberstars BLK-DL-45 Lighted Bubbler Deluxe Installation Guide - cover page
Brand
Fiberstars
Document type
User Manual
Language
English
Pages
2
File format
PDF
File size
39 KB
Published
03 August, 2012
Updated
30 September, 2023
MD5 checksum
EF71A237841F815323957370AD7F9EC2

About this manual

The Fiberstars Lighted Bubbler Deluxe (Model BLK-DL-45) is a pre-assembled device designed to provide lighted water effects for small fountains and sun shelf areas. It comes with 45 feet of 75-strand fiber optic cable pre-attached to the unit.

What's inside

  • Installation Directions
  • Conduit Requirements
  • Valve Installation
  • Illuminator Connection
  • Important Notice
  • Water Depth Guidelines
  • Debris Prevention
  • Application Methods

Frequently asked questions

What is the maximum water depth for the Lighted Bubbler Deluxe tip?

The tip should be installed approximately 5 to 8 inches underwater, though it can be deeper if the water supply volume is increased.

How much fiber optic cable comes pre-attached to the unit?

The unit comes with 45 feet of 75 strand fiber pre-attached to the bubbler.
