This document provides assembly instructions for KL2-SF and KL2-PF lens kits, including stripping the fiber jacket, installing the clamp and compression nut, choosing the correct bushing size, cutting the fiber with a hot knife, installing the lens gasket, and tightening the fiber through the lens housing.

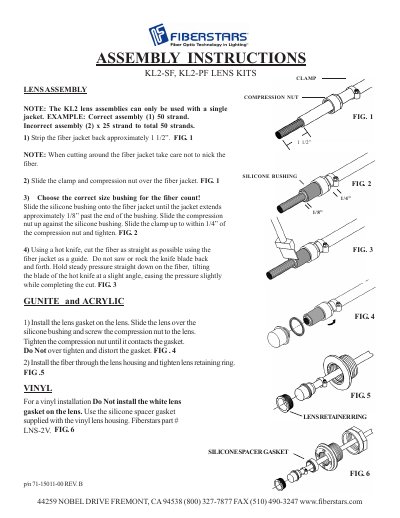

This document provides assembly instructions for Fiberstars KL2-SF and KL2-PF lens kits. It outlines the correct procedure for preparing the fiber jacket, installing the silicone bushing and compression nut, and cutting the fiber. A specific note warns that the assemblies must be used with a single jacket, not multiple strands combined to reach a count.
The guide further details the installation of the lens gasket and housing. It distinguishes between GUNITE and ACRYLIC installations, which use a white lens gasket, and VINYL installations, which require a specific silicone spacer gasket (part # LNS-2V) and omit the white gasket.
Strip the fiber jacket back approximately 1 1/2 inches.
Slide the silicone bushing onto the fiber jacket until the jacket extends approximately 1/8 inch past the end of the bushing.
Slide the clamp up to within 1/4 inch of the compression nut and tighten.
