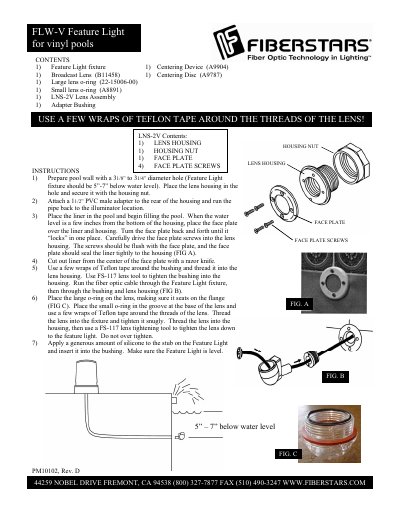

FIBERSTARS LNS-2V FLW-V Feature Light for vinyl pools

The document describes the features and characteristics of the FLW-V Feature Light for vinyl pools, as well as installation and usage instructions.

Brand: Fiberstars
Category: Other
Document type: Installation Guide
Language: English
Pages: 1
File format: PDF
File size: 78 KB
Published: 03 August, 2012
Updated: 28 September, 2023
Model: LNS-2V
MD5 checksum: 12AC5422D970015E22B628647E905DBF
PDF: FIBERSTARS LNS-2V FLW-V Feature Light for vinyl pools PDF

About this manual

This document provides installation instructions for the Fiberstars FLW-V Feature Light, a fiber optic lighting fixture intended for use in vinyl pools. The guide details the preparation of the pool wall and the installation of the lens housing, face plate, and liner.

What's inside

Feature Light fixture
Centering Device
Broadcast Lens
Lens o-ring
Lens Assembly
Adapter Bushing
Lens Housing
Faceplate
Faceplate Screws
Illuminator location

Specifications

Installation depth below water level	5"-7"
Required hole diameter	31/8" to 31/4"
Adapter size	11/2" PVC male adapter

Frequently asked questions

What is the required hole diameter for the FLW-V fixture?

The pool wall must have a hole with a diameter between 3 1/8 inches and 3 1/4 inches.

At what depth should the fixture be installed?

The Feature Light fixture should be installed 5 to 7 inches below the water level.
