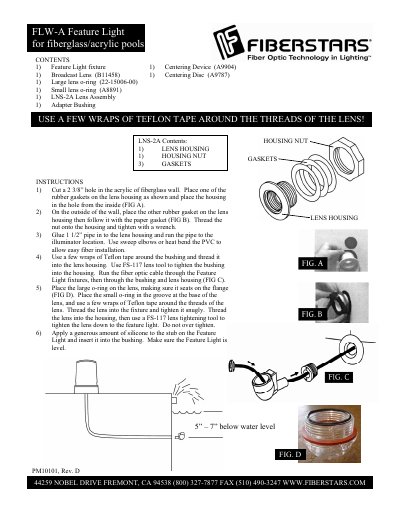

FIBERSTARS LNS-2A Contents: 1) LENS HOUSING 1) HOUSING NUT 3) GASKETS

About this manual

The document serves as an installation guide for the FiberStars FLW-A Feature Light, designed specifically for use in fiberglass or acrylic swimming pools. It details the necessary components, such as the feature light fixture, centering device, broadcast lens, and various gaskets required for proper setup.

The instructions cover the complete assembly process, including cutting a hole in the pool wall, installing the housing with rubber and paper gaskets, connecting the pipe to the illuminator location, and assembling the lens components using specific tools like the FS-117 lens tool.

What's inside

• Contents
• Instructions
• Lens Assembly

Frequently asked questions

At what depth below the water level should the FLW-A Feature Light be installed?

The fixture should be installed 5 to 7 inches below the water level.

What size hole must be cut in the pool wall for the lens housing?

A hole measuring 2 3/8 inches must be cut in the acrylic or fiberglass wall.

What tool is required to tighten the bushing into the lens housing?

You must use the FS-117 lens tool to tighten the bushing.
