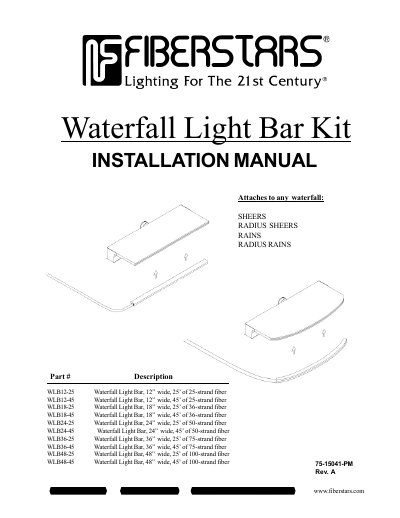

This document is an installation manual of Fiberstars Waterfall Light Bar. It mainly introduces the steps and precautions of installing Fiberstars Waterfall Light Bar.
This manual provides installation instructions for Fiberstars Waterfall Light Bar Kits, which attach to various waterfall styles including sheers and rains. The kit includes different light bar sizes and fiber lengths designed to illuminate waterfalls effectively.
| Conduit Size | 3/4" PVC conduit |
|---|---|
| Conduit Placement Height | Top of hole even with bottom of lip |
| Clearance for Sheer Falls | 1 1/8" between finished tile and front lip |
| Clearance for Rain Falls | 1 5/8" clearance |
| Fiber Run Length | Same length for multiple bars |
The light bar can be installed before or after the fall is installed, but installation on radius falls before the fall is installed is recommended.
The bevel on the light bar track should angle away from the pool wall toward the back of the water.
Install two 3/4" conduits, one on each end of the two waterfalls.
