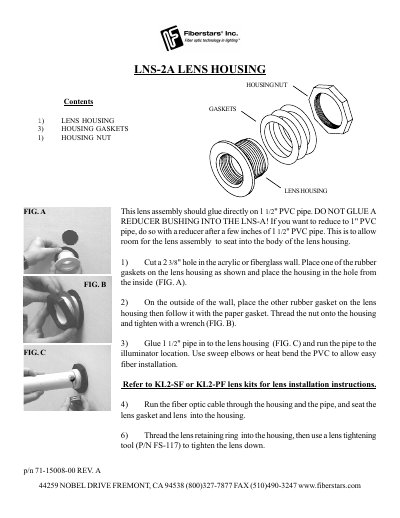

Fiberstars LNS-2A Lens Housing Installation Guide

About this manual

This guide provides installation instructions for the Fiberstars LNS-2A lens housing. It details how to prepare the wall opening, install the housing with gaskets, and connect the PVC pipe to the illuminator location. The document also references related lens kits for further installation steps.

What's inside

• LENS HOUSING
• HOUSING NUT
• HOUSING GASKETS
• Installation Steps
• PVC Pipe Connection
• Fiber Installation

Frequently asked questions

What size PVC pipe should be glued directly to the lens housing?

The lens assembly should be glued directly onto 1 1/2" PVC pipe.

What size hole must be cut in the wall for the lens housing?

You must cut a 2 3/8" hole in the acrylic or fiberglass wall.

What tool is required to tighten the lens retaining ring?

You must use a lens tightening tool with part number FS-117.
