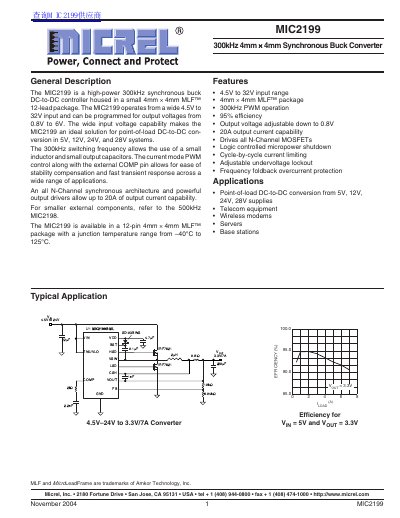

The MIC2199 is a high-power 300kHz synchronous buck DC-to-DC controller housed in a small 4mm × 4mm MLF™ 12-lead package. The MIC2199 operates from a wide 4.5V to 32V input and can be programmed for output voltages from 0.8V to 6V. The wide input voltage capability makes the MIC2199 an ideal solution for point-of-load DC-to-DC con- version in 5V, 12V, 24V, and 28V systems. The 300kHz switching frequency allows the use of a small inductor and small output capacitors. The current mode PWM control along with the external COMP pin allows for ease of stability compensation and fast transient response across a wide range of applications. An all N-Channel synchronous architecture and powerful output drivers allow up to 20A of output current capability.
The MIC2199 is a high-power 300kHz synchronous buck DC-to-DC controller housed in a small 4mm x 4mm MLF 12-lead package. It operates from a wide 4.5V to 32V input and can be programmed for output voltages from 0.8V to 6V, making it ideal for point-of-load conversion in 5V, 12V, 24V, and 28V systems.
The device features an all N-Channel synchronous architecture with powerful output drivers allowing up to 20A of output current. It utilizes current-mode PWM control for ease of stability compensation and fast transient response. The controller includes features such as cycle-by-cycle current limiting, adjustable undervoltage lockout, and frequency foldback overcurrent protection.
| Switching Frequency | 300kHz |
|---|---|
| Input Voltage Range | 4.5V to 32V |
| Output Voltage Range | 0.8V to 6V |
| Output Current Capability | 20A |
| Package Type | 4mm x 4mm MLF 12-lead |
| Operating Temperature Range | -40°C to +125°C |
| Efficiency | 95% |
| Feedback Voltage Reference | 0.8V |
| Oscillator Frequency | 270 to 330 kHz |
The MIC2199 operates with a 300kHz PWM switching frequency.
The device operates from a wide 4.5V to 32V input voltage.
The all N-Channel synchronous architecture allows up to 20A of output current.
It is available in a 12-pin 4mm x 4mm MLF package.
