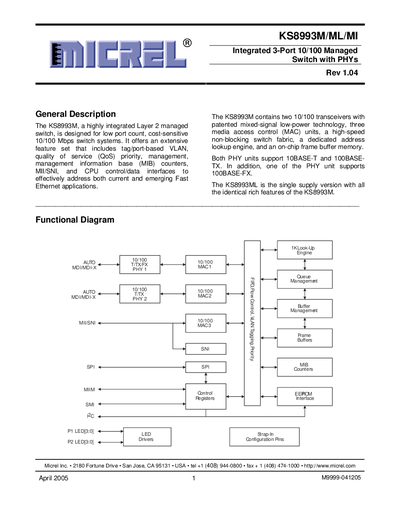

The KS8993M/ML/MI is an integrated 3-port 10/100 managed switch with PHYs, designed for low port count, cost-sensitive 10/100 Mbps switch systems. It offers a wide range of features including tag/port-based VLAN, quality of service (QoS) priority, management, management information base (MIB) counters, MII/SNI, and CPU control/data interfaces to effectively address both current and emerging Fast Ethernet applications.
The KS8993M/ML/MI family is a highly integrated Layer‑2 managed switch designed for cost‑sensitive 10/100 Mbps Ethernet applications. It provides three Ethernet ports, two 10/100 PHYs (one with 100BASE‑FX support), a non‑blocking switch fabric, and extensive features such as VLAN, QoS, IGMP snooping, and power‑saving modes.
The device is offered in a 128‑pin PQFP package, operates from 1.8 V core and 3.3 V transceiver supplies, and is qualified for industrial temperature ranges from –40 °C to +85 °C. It targets applications ranging from broadband gateways and VoIP equipment to industrial networking and sensor redundancy solutions.
| Power consumption | <0.8 W |
|---|---|
| Core voltage | 1.8 V |
| Transceiver voltage | 3.3 V |
| Operating temperature range | -40 °C to +85 °C |
| Package type | 128‑Pin PQFP |
| Number of Ethernet ports | 3 × 10/100 Mbps |
| PHY support | Two 10/100 PHYs, one with 100BASE‑FX |
| VLAN groups supported | Up to 16 groups |
| QoS priority support | Per‑port 802.1p and DiffServ |
The device dissipates less than 0.8 W, including PHY transmit drivers.
It is rated for industrial temperatures from –40 °C to +85 °C.
The switch provides three 10/100 Mbps Ethernet ports.
