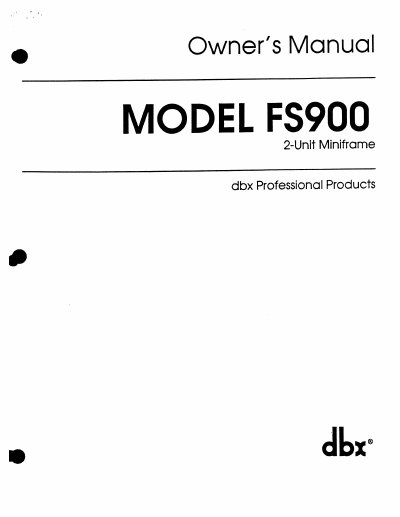

dbx FS900 2-Unit Miniframe Owner's Manual

About this manual

The dbx FS900 is a powered miniframe designed to hold up to two dbx 900 series modules or compatible modules from other manufacturers. The manual provides instructions for unpacking the unit, registering the warranty, and setting the mains voltage selector switch for 115V or 230V operation. It includes safety warnings regarding grounding and fuse requirements.

What's inside

• Introduction
• Unpacking
• Owner Registration
• Warranty
• Installation
• Mains Voltage Selector
• Heat Management
• Module Current Requirements

Specifications

Frequently asked questions

What is the maximum number of modules the FS900 can hold?

The FS900 miniframe can hold up to two dbx 900 series modules.

What fuse rating is required for the FS900?

A 3AG 250V Slow-Blow fuse with a 1/4-amp rating is required.

Can I install the FS900 above heat-producing equipment?

No, you must consider thermal sources and airflow to avoid overheating, as a fully loaded frame produces up to 20 watts of heat.
