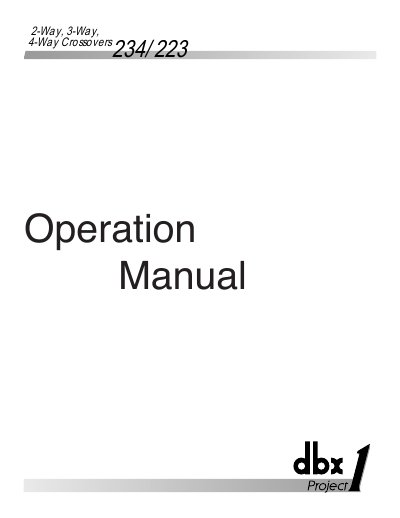

dbx 234/223 2-Way 3-Way 4-Way Crossovers Operation Manual

This document is an operation manual for 2-way, 3-way, and 4-way crossovers, providing relevant warnings and safety instructions.

Brand: dbx
Document type: User Manual
Language: English
Pages: 16
File format: PDF
File size: 314 KB
Published: 02 August, 2012
Updated: 28 September, 2023
MD5 checksum: 37205B03E8DDCD1BCB14B8150527F85D
PDF: dbx 234/223 2-Way 3-Way 4-Way Crossovers Operation Manual PDF

About this manual

This document serves as the Operation Manual for the dbx 234 and 223 crossover units. It details the features common to both models, such as back panel switches for operating modes and frequency ranges with LED indicators, low frequency summed output for mono subwoofer applications, phase invert switches on all outputs, and individual level controls.

What's inside

Warranty
Introduction
Inspection
234 Front Panel Operation
223 Front Panel Operation
Rear Panel Operations
Audio Connections
Electrical Connections
Troubleshooting
Specifications

Specifications

Safety Standard	EN 60065 (1993) IEC65 (1985)
EMC Standard	EN 55013 (1990) EN 55020 (1991)

Frequently asked questions

What is the warranty period for dbx crossovers?

The company covers all parts and labor up to a period of two years.

How should the power cord cores be connected in a U.K. mains plug?

The green/yellow wire connects to Earth, blue to Neutral (N), and brown to Live (L).

Can the user service the unit themselves?

No, all servicing should be referred to qualified service personnel.

Download PDF (314 KB)
