dbx 480P user manual, introduces the features and characteristics of dbx 480P, including power, connectors, control, etc.

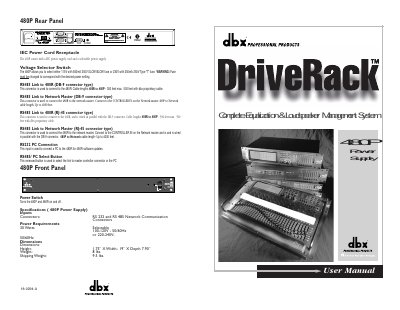

The document serves as a user guide for the dbx DriveRack 480P, a selectable power supply component of the DriveRack complete equalization and loudspeaker management system. It details rear panel features including IEC receptacles, RS232/RS485 communication links to network masters or PCs, and front panel controls.
| Power Requirements | 100-120V - 50/60Hz or 220-240V - 50/60Hz |
|---|---|
| Power Consumption | 30 Watts Selectable |
| Height | 1.75" |
| Width | 19" |
| Depth | 7.90" |
| Weight | 8 Ibs. |
The maximum cable length is 300 feet.
The cable length can be up to 4000 feet.
No, there are no user serviceable parts inside and opening the chassis voids the warranty.
