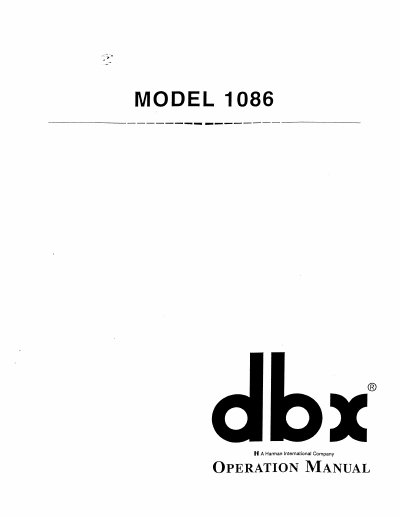

dbx 1086 Operation Manual

About this manual

The dbx 1086 is a professional audio unit that combines a microphone pre-amplifier with an optional Type IV digital output. It features advanced V2™ VCA technology for high system performance. The device allows the mic pre-amp and dynamics processor sections to be combined or accessed independently.

What's inside

• Introduction
• Warranty
• Connecting the 1086
• Operating Controls
• Front Panel - Pre-amp Controls
• Front Panel - Dynamics Processor Controls
• Rear Panel
• Microphone Pre-amp Setup
• Applications - Dynamics Processor
• Installation Considerations

Frequently asked questions

What is the dbx 1086?

The 1086 is a single channel microphone pre-amp and dynamics processor with an optional Type IV digital output.

What is the maximum ambient temperature for operating the dbx 1086?

The unit should not operate in ambient temperatures exceeding 113°F (45°C).

Which wire colors must be connected to the earth terminal on the power cord?

The core colored green and yellow must be connected to the terminal marked with the letter E or the earth symbol.

What type of fuse is required for the U.K. mains plug on this unit?

Replacement fuses must be 13 amps and ASTA approved to BS1362.
