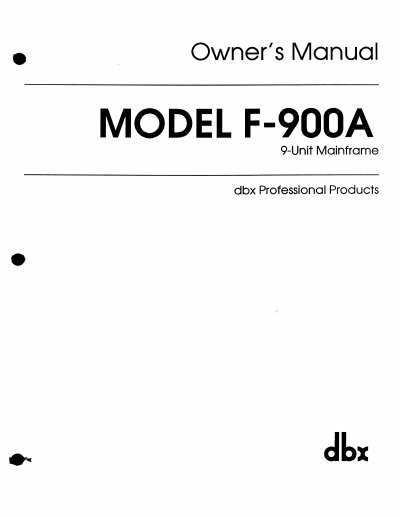

The dbx F-900A is a powered mainframe capable of holding up to nine modules from the dbx 900 series or compatible third-party units. This Owner's Manual provides instructions on unpacking, registering for warranty support, and connecting power safely.
Installation involves setting the voltage selector switch (115V or 230V) and selecting the appropriate fuse type based on the region. Users must verify that the total supply current requirements of installed modules do not exceed the mainframe's capacity for each voltage rail.
| Max Modules Capacity | 9 units |
|---|---|
| +15V Bus Capacity | 1000mA |
| -15V Bus Capacity | 1000mA |
| +24V Bus Capacity | 555mA |
| -24V Bus Capacity | 500mA |
The mainframe can hold up to nine dbx 900 series modules.
Use a 3AG 250V Slow-Blow fuse with a rating of 4-amp.
Use a 3AG 250V Slow-Blow fuse with a rating of 4-amp.
