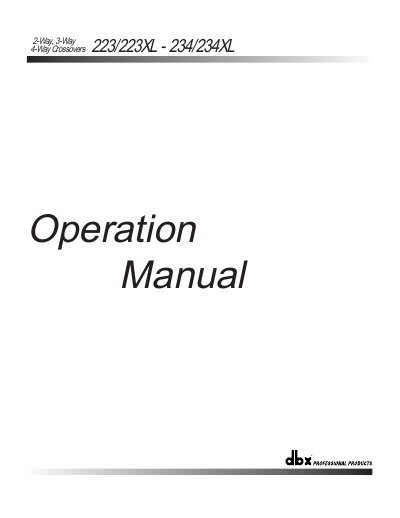

dbx 223/223XL - 234/234XL Crossover Operation Manual

About this manual

This manual provides operating instructions for the dbx 223/223XL and 234/234XL crossover units. It details safety warnings, inspection procedures, and specific operation instructions for the front and rear panels of both models. The document also covers audio and electrical connections, rack mounting, grounding, and safety requirements.

What's inside

• Warranty
• Introduction
• Inspection
• Front Panel Operation
• Rear Panel Operations
• Audio Connections
• Electrical Connections
• Rack Mounting
• Troubleshooting
• Specifications

Frequently asked questions

What is the intended use of the dbx 223/223XL and 234/234XL units?

These units are intended for rack mount use only and function as 2-Way, 3-Way, or 4-Way Crossovers.

What type of battery is required for the lithium battery warning?

The battery must be replaced only with an Eveready CR 2032 or equivalent.

What is the duration of the warranty coverage for the product?

The warranty covers all parts and labor for a period of two years.
