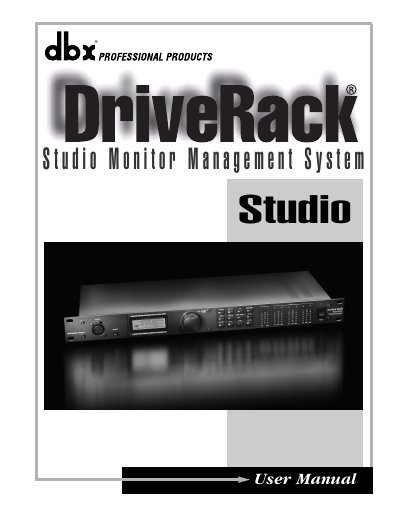

This document is the user manual for the Studio Monitor Management System Studio. The manual includes safety warnings and operating instructions for using the system, such as equipment protection, water resistance, cleaning methods, ventilation requirements, and power usage.
The dbx DriveRack Studio is a complete equalization and loudspeaker control system designed to optimize playback monitoring in studio applications. It integrates key elements such as dual 28-band graphic EQ, classic compression, sub-harmonic synthesis, and crossover configurations into a single unit.
Key features include the ability to switch between up to three pairs of studio monitors or use 'Studio Monitor Emulation' templates for various speaker sizes. The system supports 24 user programs and factory presets, featuring 2-channel XLR inputs and 6-channel XLR outputs with high-resolution 24-bit ADC/DAC conversion.
| Graphic EQ Bands | Dual 28-band |
|---|---|
| ADC/DAC Resolution | 24-Bit ADC/24-Bit DAC |
| Dynamic Range | >110 dB |
| XLR Inputs | 2 Channel |
| XLR Outputs | 6 Channel |
| User Programs | 24 User Programs |
| Factory Programs | 24 Factory Programs |
It manages all aspects of loudspeaker management for studio applications, optimizing playback monitoring.
Yes, it can help you tune your room and switch between up to three pairs of studio monitors.
Yes, it provides 'Studio Monitor Emulation' templates for speakers ranging from small 5" speakers through traditional midfield monitors.
