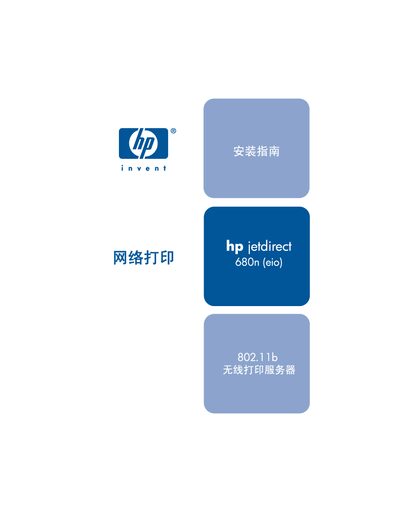

This HP Jetdirect 680n 802.11b installation guide provides hardware setup, wireless network configuration, printer installation, and troubleshooting…
The HP Jetdirect 680n 802.11b wireless print server enables a printer to connect to a network via Wi‑Fi, turning it into a network Ethernet printer. The guide walks you through unpacking, hardware installation, and configuring the built‑in wireless settings.
It also covers connecting the server to various network environments (Microsoft Windows, Novell NetWare, UNIX, Apple Mac), explains wireless security options, and provides a detailed troubleshooting section and warranty information.
| Wireless standard | IEEE 802.11b |
|---|---|
| Encryption | WEP 40/64‑bit or 104/128‑bit |
| Physical dimensions (L×W×H) | 157.5 mm × 88.80 mm × 31.10 mm |
| Weight | 132 g |
| Maximum power consumption | 2 W |
| Operating temperature (non‑operating) | -20 °C to 70 °C |
| Relative humidity (non‑condensing) | 15 %–95 % @ 40 °C, 15 %–90 % @ 65 °C |
Use the cold reset procedure described in section 5‑2 “重设为出厂默认值（“冷重设”）”.
The device supports WEP with 40/64‑bit or 104/128‑bit encryption.
The unit consumes up to 2 W of power.
Length 157.5 mm, width 88.80 mm, height 31.10 mm.
