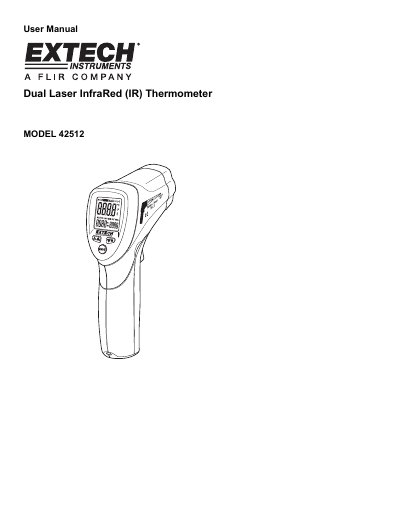

This manual introduces the use of the Model 42512 IR Thermometer, including safety precautions, meter description, temperature measurement operations, etc.
The Extech Model 42512 is a non-contact infrared thermometer designed to measure surface temperatures up to 1832°F (1000°C). It features built-in dual lasers that converge at 30 inches to create a 1-inch target spot, ensuring accurate targeting. The device includes an adjustable emissivity setting ranging from 0.1 to 1.00, allowing for precise measurements on various surface materials.
| Temperature Range | -50 to 1000°C (-58 to 1832°F) |
|---|---|
| Resolution | 0.1° < 1000°, 1° > 1000° |
| Emissivity Range | 0.10 to 1.00 adjustable |
| Field of View Ratio | Approx. 30:1 ratio |
| Laser Class and Power | Class 2 laser < 1mW power |
| IR Spectral Response | 8 to 14 um (wavelength) |
The Model 42512 measures and displays non-contact temperature readings up to 1832°F (1000°C).
At a distance of 30 inches, the built-in dual lasers converge to create a 1-inch target spot.
Select the temperature units (°F/°C) using the switch located inside the battery compartment.
